$450.00

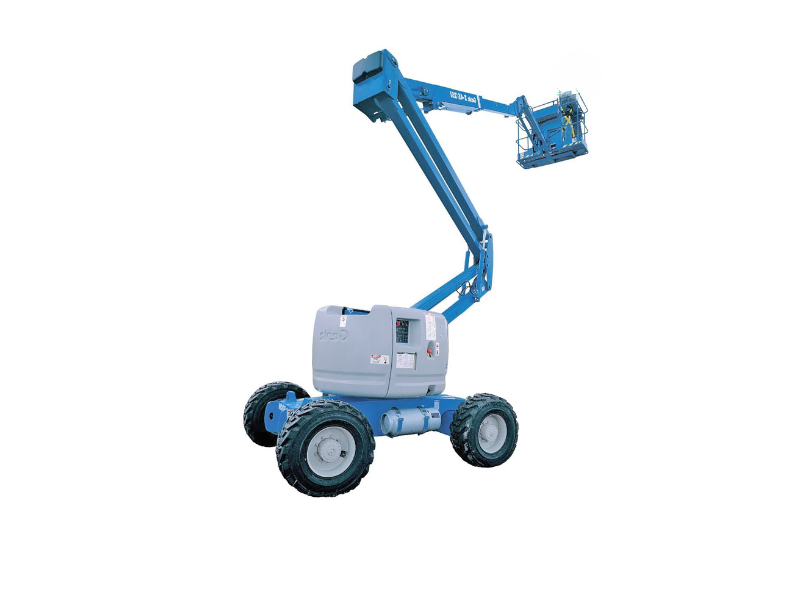

RENT the Genie Z-45/25J RT articulating boom lift is designed for safe and efficient work at elevated heights, particularly on rough terrain.
Specs:
- Maximum working height: 52 ft 1 in (16.05 m)
- Maximum horizontal reach: 24 ft 8 in (7.52 m)
- Maximum up and over clearance (riser extended): 23 ft 5 in (7.14 m)
- Platform capacity: 500 lbs (227 kg)
- Platform rotation: 160°
- Jib length: 5 ft (1.52 m)
- Vertical jib rotation: 135°
- Turntable rotation: 355° non-continuous
- Turntable tailswing: Zero
- Drive speed (stowed): 3.1 mph (5 km/h)
- Drive speed (raised): 0.68 mph (1.1 km/h)
- Gradeability (stowed): 45 %
- Turning radius (inside/outside): 5 ft 6 in / 14 ft 9 in (1.68 m / 4.50 m)
- Power options: Diesel or dual fuel (gas/LPG).
- 75 hp (55.9 kW) Ford gas/LPG
- 48 hp (35.8 kW) Deutz T4f diesel
- 48 hp (35.8 kW) Perkins T4f diesel
- 60 hp Ford MSG425 gas/LPG Dual Fuel
- Dimensions (stowed):
- Height: 7 ft (2.13 m)
- Length: 21 ft 10 in (6.65 m)
- Width: 7 ft 6 in (2.29 m)
- Weight: 14,363 lbs (6,515 kg)
- Tires: Rough terrain air-filled (standard), rough terrain foam-filled, rough terrain non-marking (air or foam-filled), high flotation air-filled, or sealant treated air-filled
Features
The Genie Z-45/25J RT comes with several standard features including a self-leveling platform with hydraulic rotation, proportional joystick controls, and drive enable. It also includes features like an AC power cord to the platform, a horn, hour meter, tilt alarm, and descent alarm. Other features include positive traction drive, two-speed wheel motors, a telematics-ready connector, and 12V DC auxiliary power. The machine is also equipped with a swing-out engine tray, and the Deutz engine option includes an intake air heater
*Equipment rented may not match the picture advertised
*Day Rate is the Price Quoted
